EGE Elektronik - Contrôleurs de débit - P11261 - ST 521/2 KH
Livraison gratuite
Reference : ST 521/2 KH
Marque : EGE Elektronik
Prix unitaire
- Prix HT
638,45 €
Prix TTC766,14 € - QuantitéPrix unitaire HT3619,297€5606,528€
-
Quantité minimale : 1
-
Quantité :
-
Description

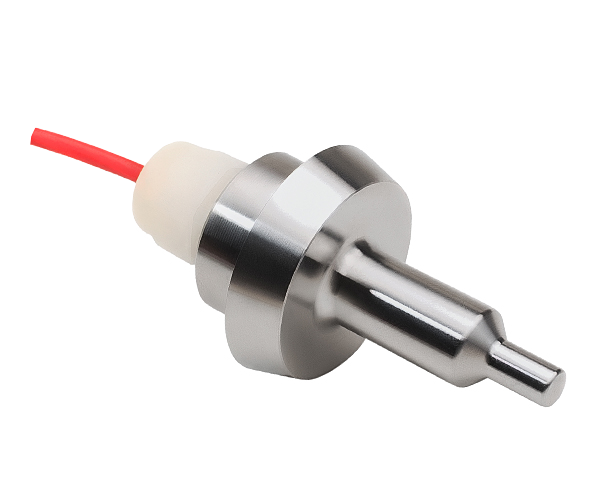

G1/2 screw-in sensor for flow monitoring in gaseous and liquid media Medium temperature in liquid media up to 160 °C Corrosion-proof stainless steel housing AISI 316 Ti Immersion depth 80 mm 2 m fixed cable FEP Installation in T-piece connector or welding sleeve Needs amplifier of series 400 with analogue or switching output
| Product ID | P11261 |
| Accessories (in scope of delivery) | 2 x gasket G1/2 AFM 34 |
| Associated amplifiers | SKM 420, SKZ 400 |
| Protection [EN 60529] | IP 67 |
| Material housing | stainless steel AISI 316 Ti |
| Compressive strength | 60 bar |
| Sensor length L | 80 mm |
| Detection range air | 1 ... 40 m/s |
| Medium temperatur fluids | 10 ... 160 °C |
| Electrical connection | 2 m FEP-cable 4x0.25 mm² |
| Detection range water | 1 ... 150 cm/s |
| Material sensor touched by medium | stainless steel AISI 316 Ti |
| Temperature gradient fluids | 250 K/min |
| Reaction time typ. | 3 s (2 ... 20 s) |
| Detection range Oil | 3 ... 300 cm/s |
| Ambient temperature | -20 ... 160 °C |
| Medium | Water, oil |
| Process connection | G1/2 |
| Temperature gradient gaseous media | 20 K/min |
| Start-up time typ. | 8 s (5 ... 20 s) |
| Note | probe with longer cable available on request, different materials on request |
| TYPE | ST 521/2 KH |
| Medium temperature air/gas | 10 ... 135 °C |
