OMRON - Composants de sécurité - Barrières immatérielles F3SG -R - F3SG-2RA0430-30
Livraison gratuite
Reference : F3SG-2RA0430-30
Marque : OMRON
Prix unitaire
- Prix HT
971.37 €
Prix TTC1,165.64 € - QuantitéPrix unitaire HT3942.226€5922.798€
-
Quantité minimale : 1
- Quantité :
-
Description

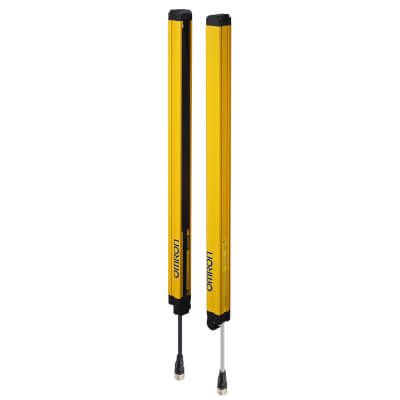

Barrière immatérielle gamme robuste f3sg - version advanced - type 2 - résolution 30 mm - hauteur protégée 430 mm - portée opérationnelle 20 m - ip67 - ce, ul/csa, gb, tüv
| Cascadable | |
| Degree of protection (IP) | IP67 |
| Minimum operating distance | 0.3 m |
| With muting function | |
| Voltage type | DC |
| Number of semiconductor outputs with signalling function | 1 |
| Maximum safety range | 20 m |
| Communication port(s) | USB |
| Width sensor | 35 mm |
| Detection capability | 30 mm |
| Ambient temperature | -10-55 °C |
| With beam coding | |
| Type of sensor | Hand detection |
| Type of switching output of the OSSD | PNP/NPN |
| Supply voltage DC | 19.2-28.8 V |
| Height of sensor | 35 mm |
| Type of electric connection | Connector M12 |
| Time of reaction | 8 ms |
| Type of safety acc. IEC 61496-1 | 2 |
| Scope of delivery | Transmitter and receiver |
| Overall length | 448 mm |
| Suitable for safety functions | |
| Safety field height | 430 mm |
| Number of protected semiconductor outputs | 2 |
| Wavelength of the sensor | 870 nm |
| Beam gap | 20 mm |
| Max. output current at protected output | 300 mA |
| Number of beams | 20 |
