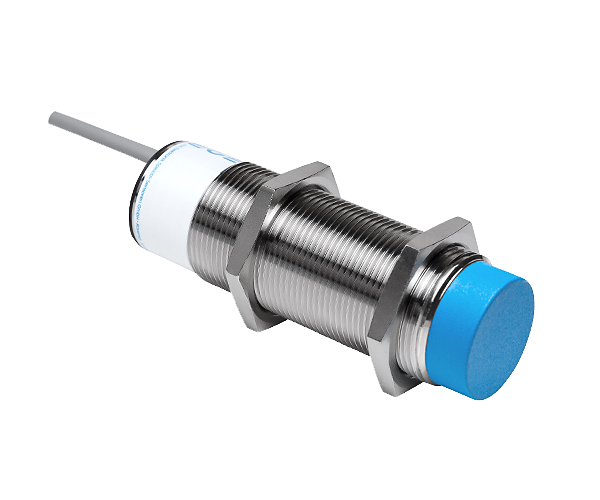

EGE Elektronik - Détecteurs de proximité - P31410 - IGEXPa 10
Reference : IGEXPa 10
Marque : EGE Elektronik
Prix unitaire
- Prix HT
222,07 €
Prix TTC266,48 € - QuantitéPrix unitaire HT3215,408€5210,966€
-
Quantité minimale : 1
-
Quantité :
-
Description
Intrinsically safe sensors for zone 0/20 With ATEX- and IECEx-certification Amplifier IKMb... is required for operation For use under rough climatic conditions down to -60 °C Connection: 2 m FEP-cable Waterproof up to 30 m (IP 68) and resistant to high-pressure cleaning (IP 69) For use in refrigeration systems and cooling processes and outdoor areas
| Product ID | P31410 |
| IECEx marking dust | Ex ia IIIC T₂₀₀65°C Da |
| Ambient temperature dust in zone 20 | -60 ... 60 °C |
| Maximum values | Ui = 12.6 V / Ii=15.9 mA / Pi = 50 mW / Ci = 66.2 nF / Li = 1.2 mH |
| UKEX Certificate | EPS 22 UKEX 1 139 X |
| Protection [EN 60529] | IP 68 (3 bar), IP 69 |
| Ambient temperature gas zone 0 T6 | -60 ... 60 °C |
| Ambient temperature gas zone 0 T5 | -60 ... 60 °C |
| Material housing | stainless steel AISI 316 Ti, PTFE, PVDF |
| ATEX Certificate | EPS 17 ATEX 1 173 X |
| Ambient temperature gas zone 0 T4 | -60 ... 60 °C |
| Ambient temperature gas zone 0 T3 | -60 ... 60 °C |
| Thread/sleeve | M30x1,5 |
| IECEx Certificate | IECEx EPS 17.0087X |
| ATEX marking gas | Ex II 1G Ex ia IIC T6...T3 Ga |
| Ex area uf use | Zone 1, Zone 0, Zone 20, Zone 21 |
| Electrical connection | 2 m FEP-cable 2x0.34 mm² |
| Operating Distance sn | 10 mm flush |
| ATEX Marking dust | Ex II 1D Ex ia IIIC T₂₀₀65°C Da |
| IECEx marking gas | Ex ia IIC T6...T3 Ga |
| Note | with longer cable available on request |
| TYPE | IGEXPa 10 |
